Functions

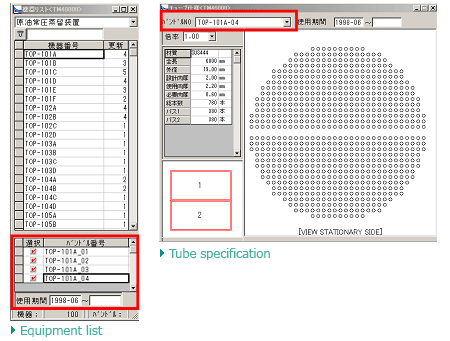

It is possible to manage history data of heat exchanger every bundle unit other than information such as equipment specification, tube layout and tube passes. It is possible to respond modification of bundle specification (tube material, the number of tubes) at a time of bundle replacement.
top
Inspection planning will be drawn up every various inspection method such as sampling, eddy current inspection and ultrasonic flaw detection.
Planning method has not only TBM* planning function but also CBM* planning function which calculate correct inspection timing from Corrosion rate/Remaining life, and draw up inspection planning without omission.
And T-MIC can output Work order form on tube layout such as retubing and inspection target point.

* Time Based Maintenance
* Condition Based Maintenance
top

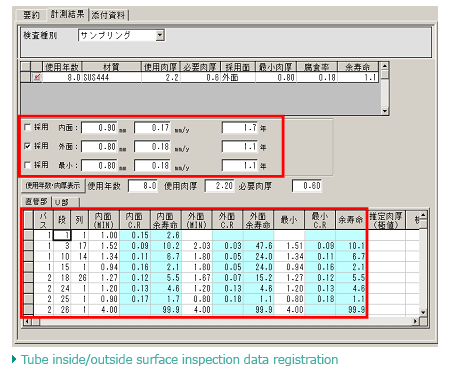

It is possible to import tube thickness data of inside/outside surface individually, and can perform life evaluate and corrosion trend check every inside/outside surface.
* Life evaluation by the minimum of inside/outside surface total is also possible.
top

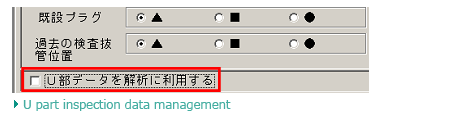

T-MIC can manage straight/U part of thickness data individually. And it is possible to specify whether you apply U part data analysis at environment setting of analysis function, so can also register U part data as reference value.
top
T-MIC can perform management/registration for measured results construction and inspection method. As contents which can perform registration/management, there is information about Inspection result summary, measured result by one tube, extreme value analysis result, material change, plugging and so on. And automatic calculation of Corrosion rate/Remaining life which is based on these information is possible. It is possible to take a look at replacement history on tube layout, and replacement history by bundle/pass/tube unit is obvious.
top

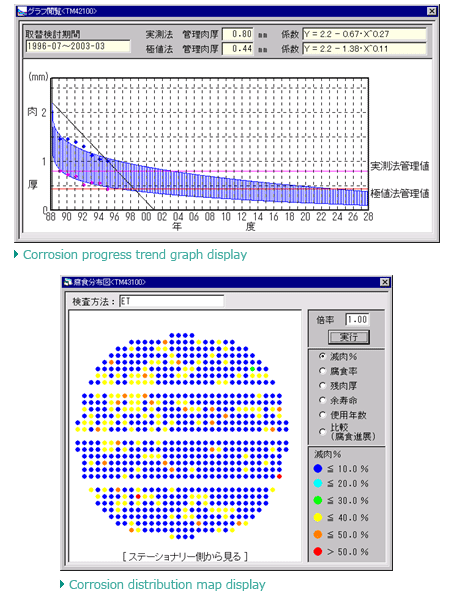

It is possible to perform evaluation/analysis condition of current heat exchanger which is based on registered measured value. It is possible to make a graph of corrosion progress trend which is based on measurement result and extreme value analysis result each year. By this function, corrosion/thickness reduction pattern is obvious. T-MIC can manage corrosion by using history data efficiently as well as evaluation of single year when it has been performed till now. So it is possible to perform analysis of more reliable maintenance information. As regards results of complete inspection such as eddy current inspection, they are displayed on tube layout, so corrosion distribution is obvious.
top

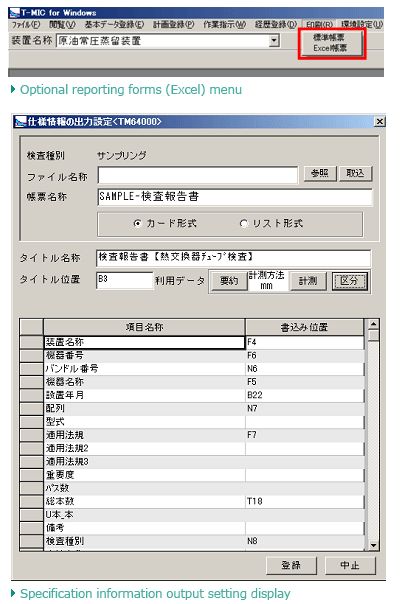

"Optional reporting forms creation program" which can import data from T-MIC to optional Excel format that user defined is prepared
So user can create excel reporting forms freely.

* By a reporting forms format, there is the thing which is not output.
* Font type, size, color and others in the output follow definition of Excel.

Only data which doesn't contain an attribute is output from T-MIC.
Print menu has not only default reporting forms but also optional reporting forms (Excel).
T-MIC can set which information is output for which address of Excel sheet which format has already been defined.

top
Menu display and environment setting display of T-MIC Ver.4 were unified with A-MIS Ver.5, so there is no uncomfortable feeling by using both systems.

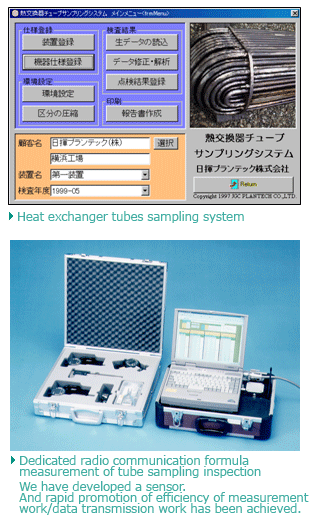

Heat exchanger tubes inspection collects huge volumes information by doing sampling, eddy current inspection and ultrasonic flaw detection. T-MIC Ver.4 can import directly various measurement results which are collected at maintenance field, through Excel sheet. So working efficiency largely improves. And by interlocking with Heat exchanger tubes sampling system which is developed separately, it is possible to perform efficient loading of actual measured thickness data which is collected at maintenance field.
