You can grasp whole conditions of plant visually with registered plot plan.
Clicking on objective area or line on the plot plan displays PFD. (PFD can be set instead of plot plan.)

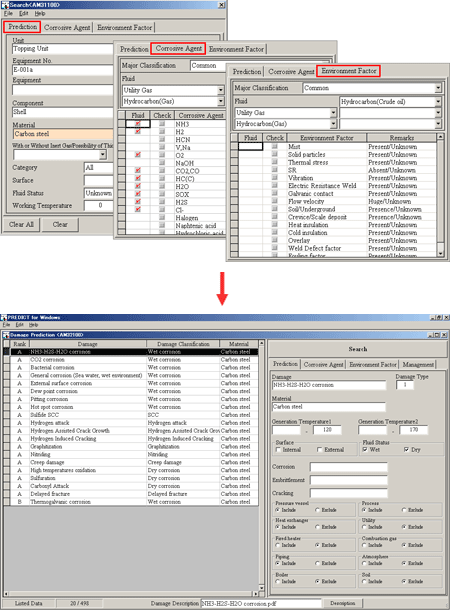

Inputting the parameters, such as material, temperature, fluid name and etc., in the screen, will retrieve the probable damages under the designated environment.

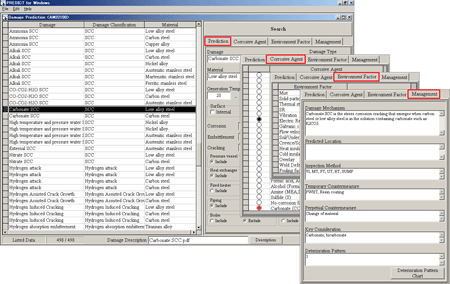

The predicted damages will be retrieved in the rated order by the weighted parameters allocated to each damage. This new feature assures to eliminate personal-dependent omission or conflict of damage prediction.
Technical document and data can be linked with the desired screen.
The probable damage for plural equipment can be predicted using the design data in Excel spreadsheet.
This function enables to minimize the time for selecting parameters of damages, currently it is a task for plant engineers that requires hours of work, and permits to eliminate personal-dependent variation of damage prediction.
